Existing Structure Location Maps

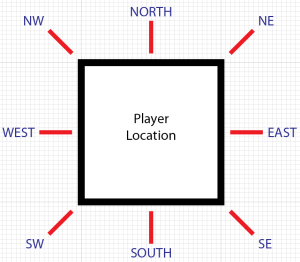

In the last entry, I discussed the challenges of producing logical text adventure maps based on real geography; in this case, the physical geography of the city of Williamsburg in the late 1700s. The good news is that the streets and main building locations have been preserved, which helps in map development. But the challenges of using a real place that needs to be reproduced in the context of an adventure game map are even more challenging when using exisitng building architecture. The constraints of walls, doors, hallways, rooms, and stairs along with their comparative physical location relationships don’t leave much room for “adventure navigation license.” The biggest challenge is in using the compass rose as a foundation for navigation, where you have 8 directions of movement from any particular point (north, northeast, east, southeast, etc.). Add “up” and “down” for a total of 10 basic commands that can be typed to specify movement. Consider the following diagram:


The player location can represent anywhere in physical space: a forest clearing, a small cave chamber, a grand ballroom. Adding the “up” and “down” directions provides a good deal of movement options including 3-dimensional flexibility, for a total of 10 choices for player movement from any given location in the game. However, particular real locations can be difficult to reproducing using the compass rose navigational framework without making overly compromising game navigation decisions. For example, suppose we’re dealing with a long hallway with many doors on both sides, like a hotel hallway:

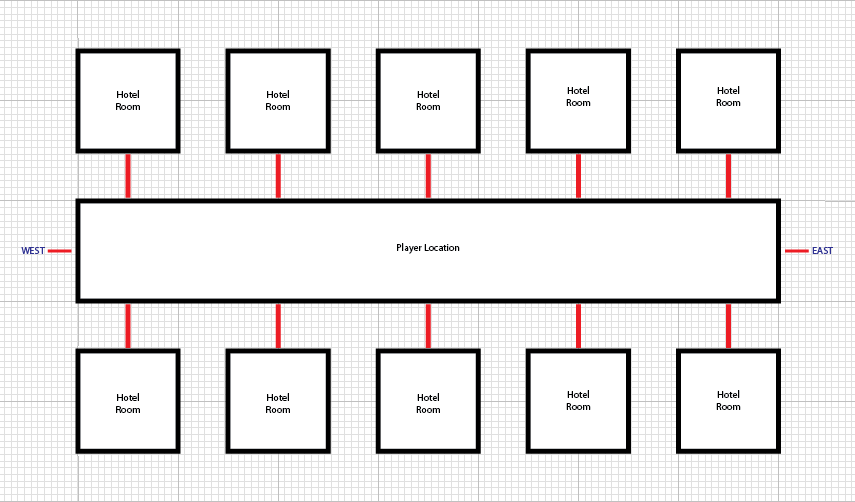

room-3We can see here that a single “location” representing the hallway is not a practical solution to get to the individual hotel rooms; there four north directional choices and four choices for going south. While creative programming can help (“enter room 101,” “enter room 103,” “enter room 105,” etc.), that approach tends to add to the command complexity for what should be one of the easier tasks in Interactive Fiction play: moving from one spot to another. A different approach might be to segment the hallway:

room-4Using this approach, we see that using the compass rose commands are sufficient for us to navigate to any location on the map without any amiguity. But there’s a tradeoff in that getting from Hall Location 1 to the room in the far northeastern corner would take five steps in the game. The can be tediuos for the player, especially if there is not a particularly great amount of game content to be discovered in each of those Hallway locations.

It is this navigation design issue that is driving the development of the building interior set of game maps. Some creativity allows us to “bend” the compass rose directions to suit our needs, for example:


Here we have a location that could be a hallway, with accesssibility to three doors on the northern face of the hall and three doors on the southern face. We would need to address this layout in the text description of the location, something like, “You are in an east-west running corridor with six doors total on the northern and southern walls. North of you is a single door, and you likewise see doors on the northwest corner as well as the northeast corner of the corridor. The southern wall has the same arrangement of doors.”

As work progresses on developing the Williamsburg buildings’ intererior maps, it is this interpretation of the compass rose that allows us to achieve an acceptable level of architectural fidelity. The Governor’s Palace is easily one of the most complex structures being reproduced within the game, and it is also one of the key narrative locations. There are four floors to the Palace, and the maps are displayed below:

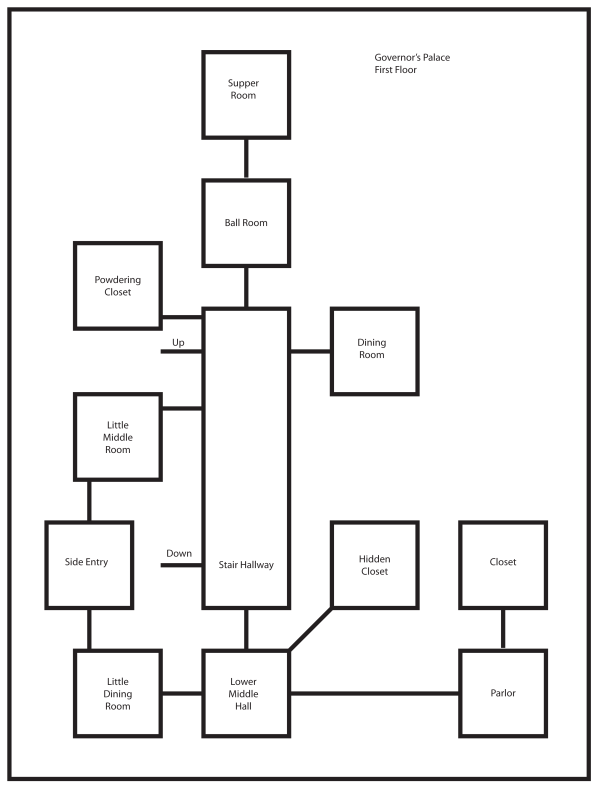

First Floor (source map here):

Governors Palace First Floor

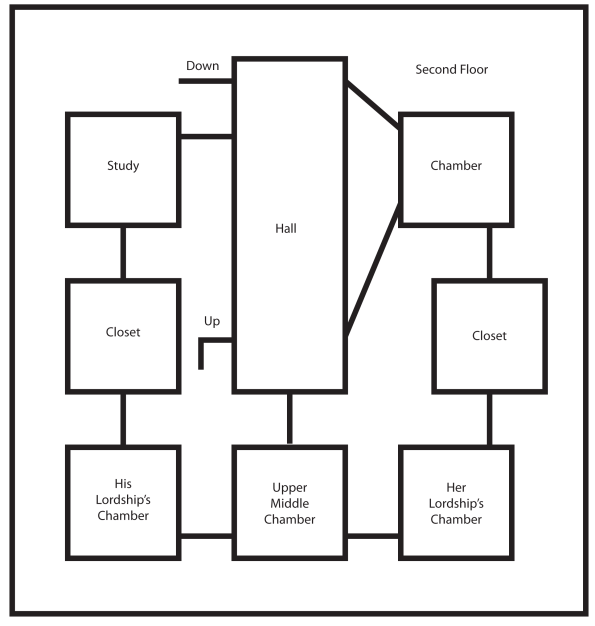

Second Floor (source maps here, here, here, and here):

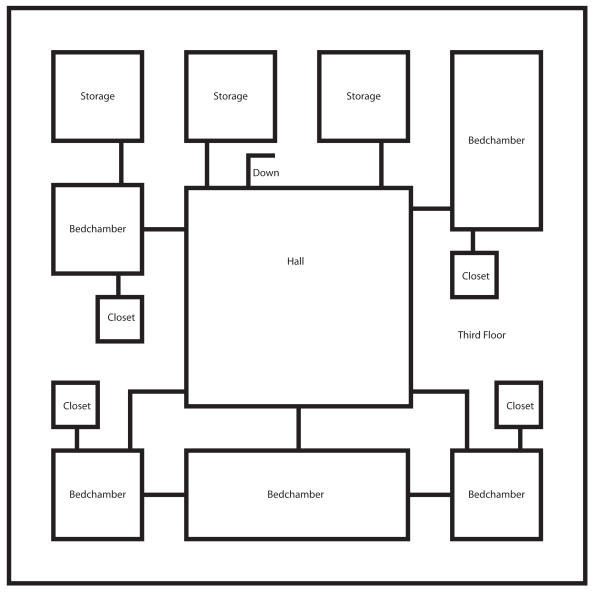

Governors Palace Second FloorThird Floor (source here):

Governors Palace Third FloorBasement (source here):

Governors Palace Basement

This mapping structure gives a total of 44 separate player locations for the game, but remember that these 44 locations are at the single Governor’s Palace location on the overall physical map. There are still quite a few buildings to map (which means researching all the architectural plans from the Colonial Williamsburg Library.  Lots of fun in the days ahead!
